Location of Center Vent Pod, and Legroom Vent Pod

This is a top view of the Heater box, illustrating the pod mounting speed nuts, and the location of the center vent pod inside heater box (you can just see it peeking out from behind the the center vent duct.

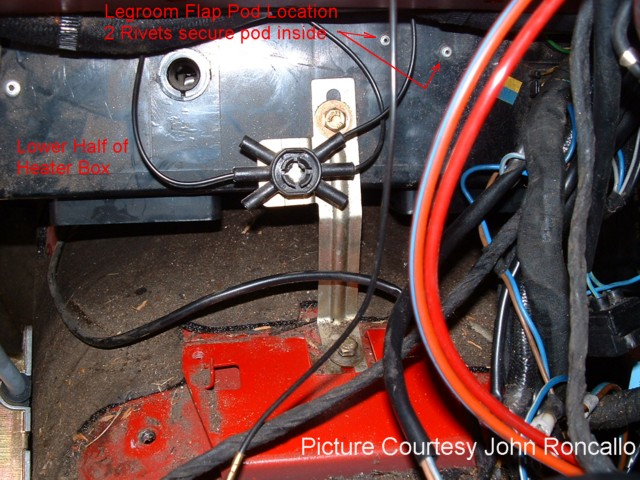

Location of the legroom vent pod, in the heater box, just above the tranny tunnel. Black spider-looking thing is the fibre-optic hub that illuminates the dash switches.
